SPECIFICATIONS

Advertising Distance: Up to 400m (open area)

Advertising Format: iBeacon, Eddystone (URL/UID/TLM), AltBeacon

Advertising Interval: Default 1300 ms, range from 100 ms to 10000 ms

Battery Life: 6 years (ADV Interval = 1300 ms; TX Power = 0 dBm)

Bluetooth Version: BLE 5.1 (Bluetooth low energy)

Brand Name: FEASYCOM

Chipset: Dialog DA14531

Default Broadcast Interval: 1300 ms for iBeacon & Eddystone

Firmware Upgrading: OTA (upgrade firmware over the air)

High-concerned chemical: none

Item Type: BLE Beacon Bracelet

Material: ABS plastic (shell), silicone (wristband)

Max Number of Broadcast: 10 Slots configurable advertising frames

Model Number: FSC-BP107D

Operating Temperature: -20 °C to +60 °C

Origin: Mainland China

Power Supply: CR3032 (550 mAh), Replaceable Battery

Protection: IP67 Waterproof

System Compatibility: iOS 7.0+, Android 4.3+

TX Power: -19.5 dBm to +2.5 dBm

Wireless Function: Yes

INTRODUCTION

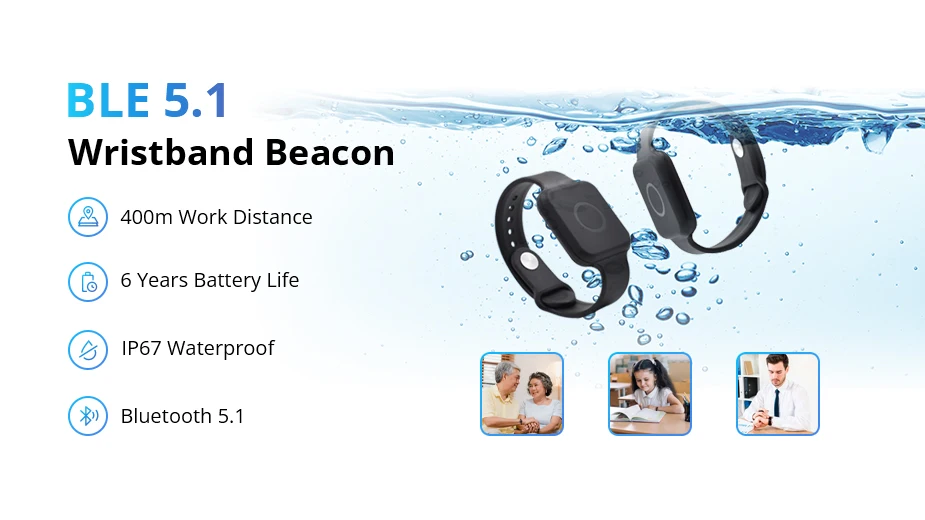

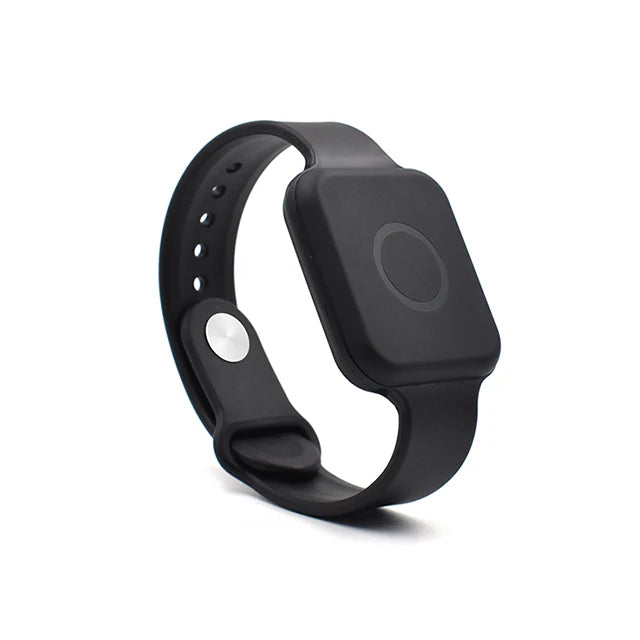

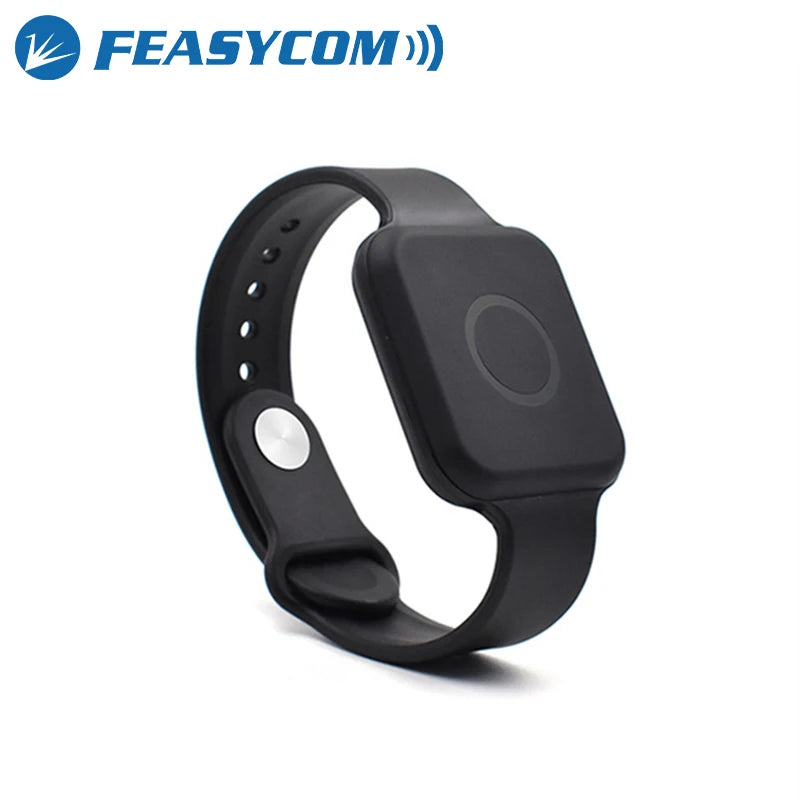

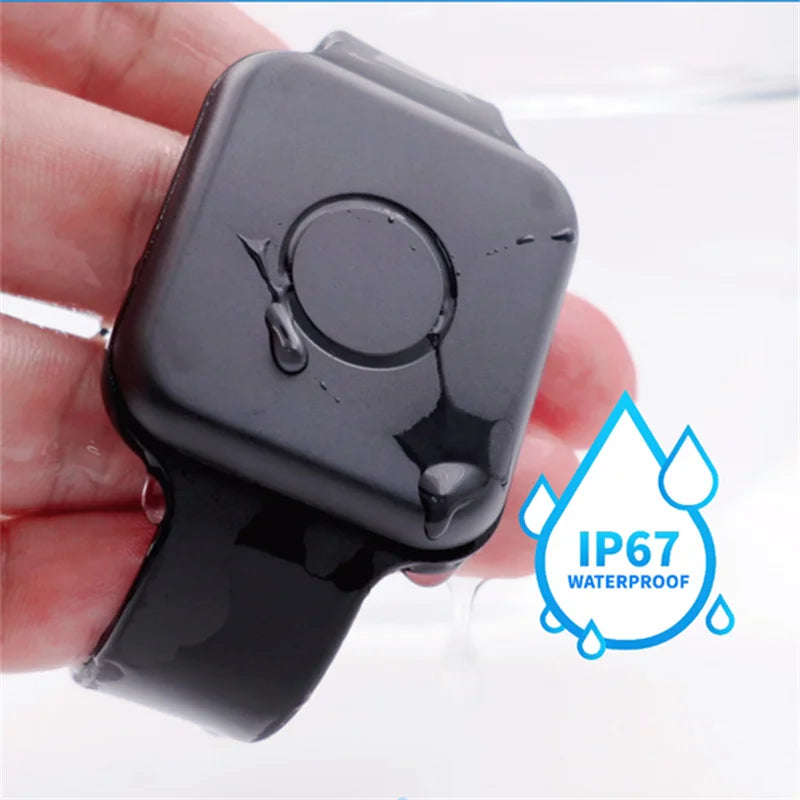

FSC-BP107D is a wearable wristband waterproof IP67 beacon with innovative battery replacement and supports Bluetooth Low Energy (BLE) 5.1 base on Dialog DA14531 chips. It supports iBeacon, Eddystone (e.g. URL, UID, TLM), AltBeacon for broadcasting and provides the ability to advertise up to 10 slots of advertising frames.

* Work distance up to 400m in open area
* IP67 waterproof
* Bluetooth 5.1 compliant
* Pre-programmed with Feasycom standard beacon firmware
* Up to 10 slots of Advertising Frames
* Portable smart beacon with 6 years battery Life (by default settings)

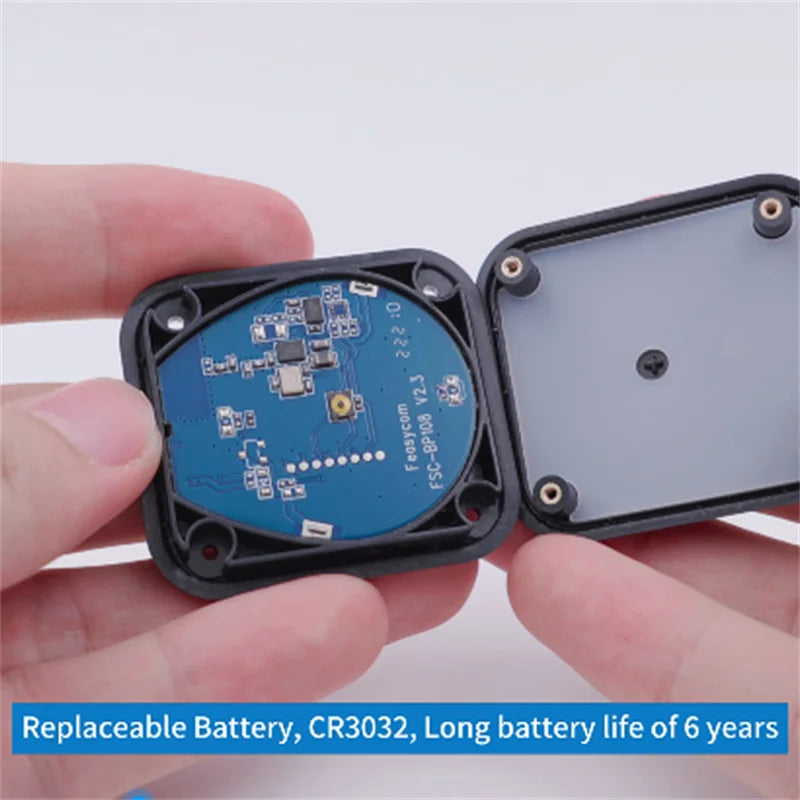

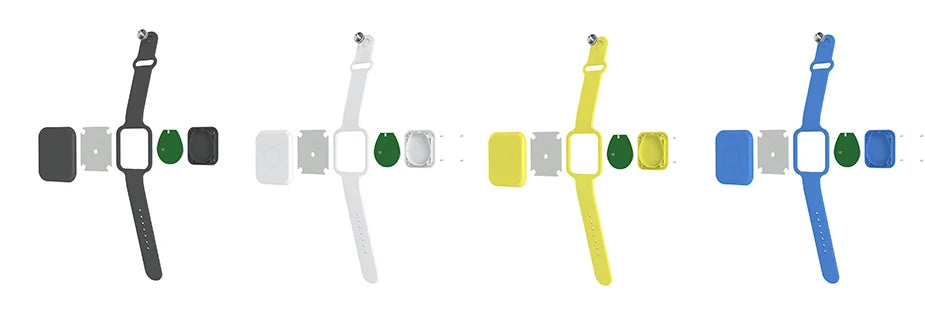

* Battery can be replaced when it is exhausted

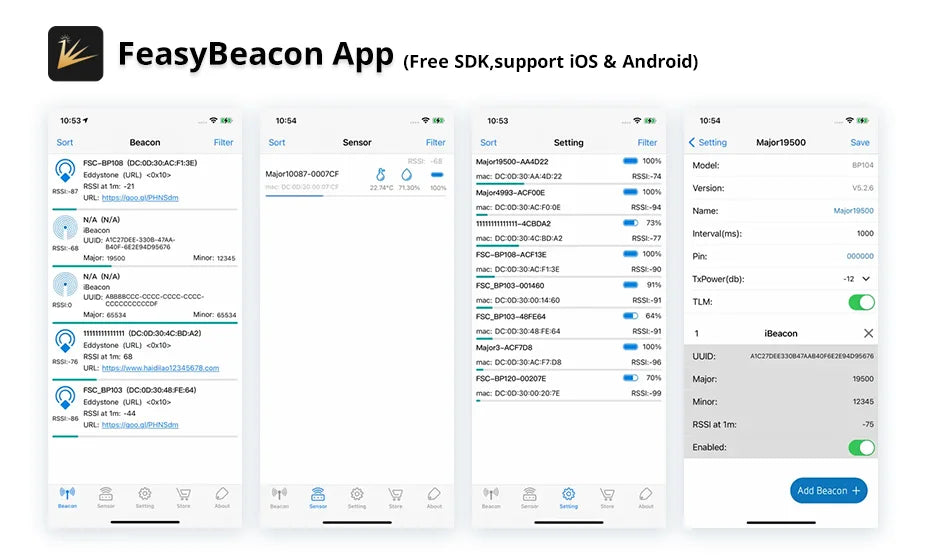

* Configurable by free FeasyBeacon mobile App and SDK

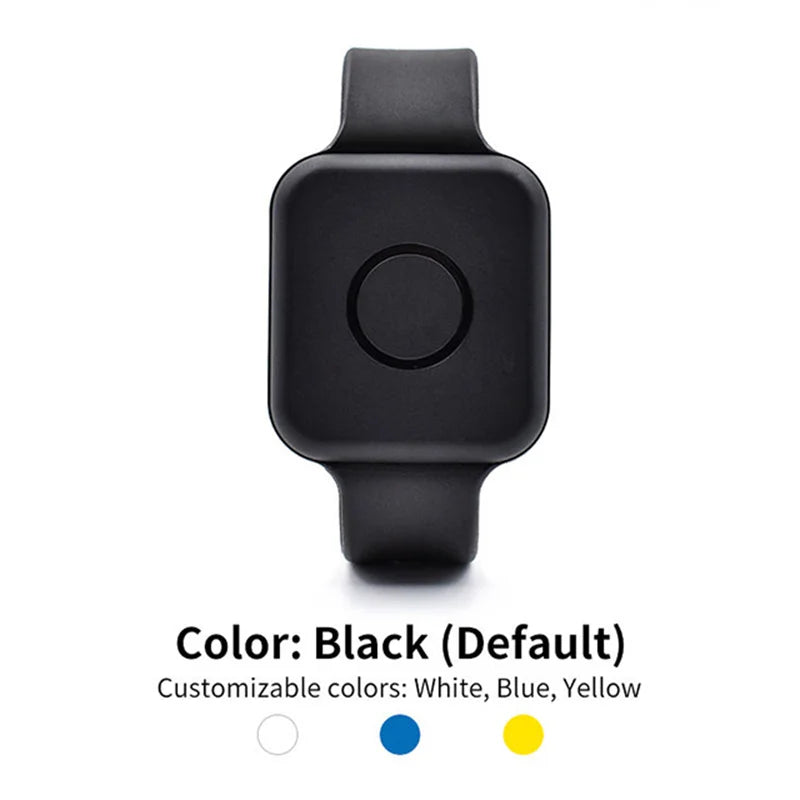

* Customizable color, logo, hardware, software

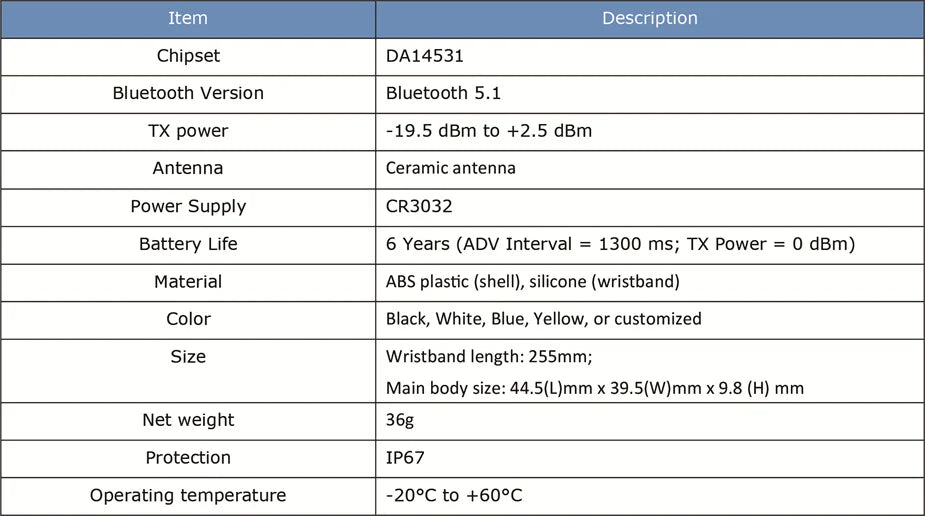

Specification

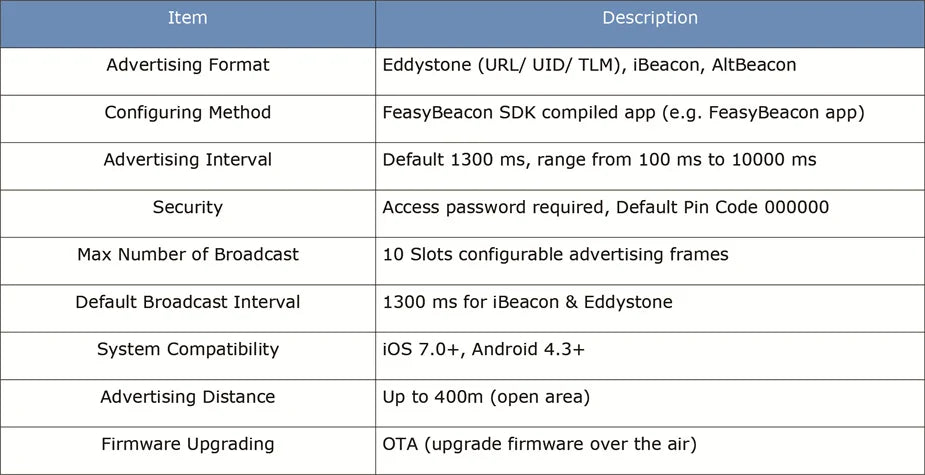

Functions

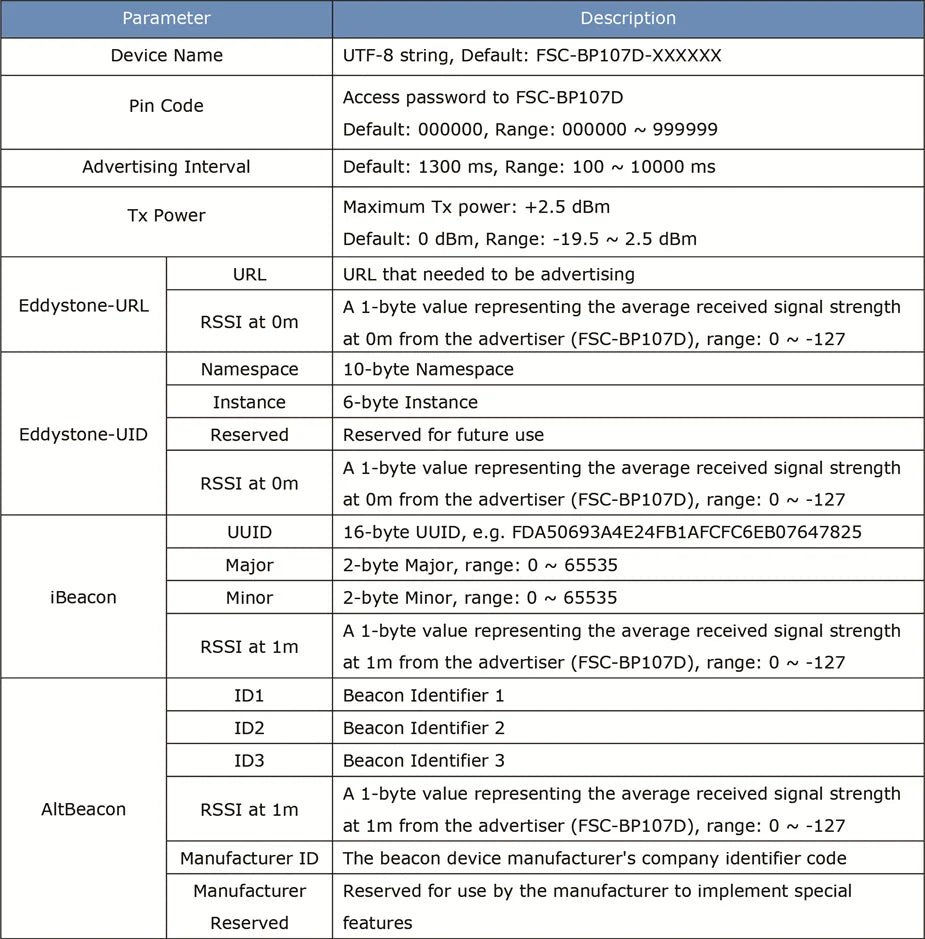

Configurable Parameters

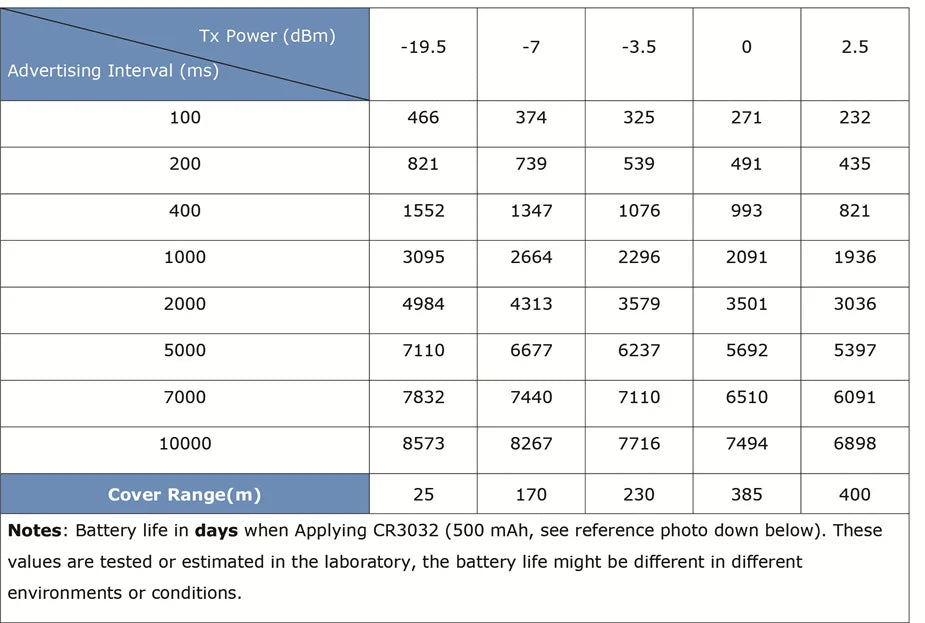

Battery Life & Cover Range Estimation

FAQ for FeasyBeacon

1.What’s RSSI?

RSSI (Received Signal Strength Indicator) at 1m it's used to estimate proximity (immediate, near, far, unknown) and accuracy)

2.Is FeasyBeacon support second development?

Yes,we have the iOS and Andriod system SDK.

3.How to select the most suitable installation?

The beacon signal will be lost if it is blocked by metal, water or the human body. For that reason it is good to place the beacons above 2.5 meters high on walls or on the ceiling.

4.When receiving the beacon broadcast notification, is the Bluetooth 5 smartphone faster than Bluetooth 4 smartphone?

No, it’s depend on the android and iOS operate system, has nothing to do with the Bluetooth standard.

5.Proximity beacon can collect data?

Beacons themselves don’t collect data. They broadcast signals that can be detected by apps on mobile devices.

6.What should i do if i forget Feasybeacon password?

If miss the password, you can connect beacon using the default password (000000) within 1 minute of power-on. Follow the steps below to modify password.

Re-power the Beacon device.

Enter FeasyBeacon APP, connect beacon device by default password (000000) in the setting interface.

Change new password and save it.
